Aramid Separator Slitting Machine

Description

PNT’s Aramid Separator Slitter is suitable for processing porosity film which is coated.
Web thickness from 10㎛ to 30㎛ is manageable on this machine.

The machine features with max web width 1,200mm, max speed of 200m/min at 0.5~2Kgf of tension.
The vibration is minimized even at maximum processing speed.

Machine Specifications



General specification

Web Material

separator Film(Aramid coated)

Web Thickness

Min. 10㎛ ~ Max. 30㎛
(Normal Operation: Min. 12㎛~Max. 20㎛ )

Web Width

Max. 1,200mm.

Slitting Width

Max. 150mm ~ Min. 50mm

Roll Width

1,300 mm

Mechanical Speed

Max. 200m/min (Normal. 100-150m/min)

Unwind Diameter

Max. 600 mm

Rewind Diameter

Max. 350 mm

Slitting System

Laser & Shear Knife Slitting System

Winding System

2 Shaft Center Winding System

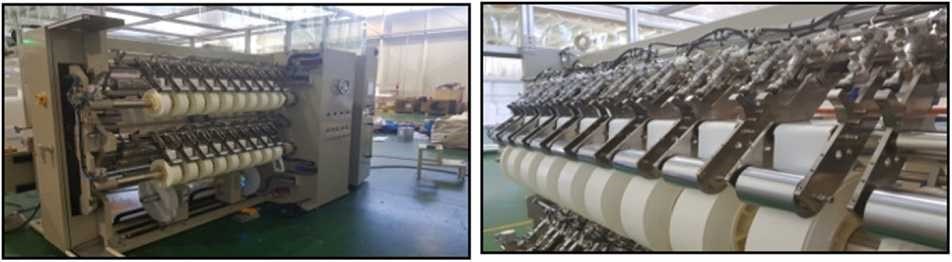

Aramid Separator Slitting Machine

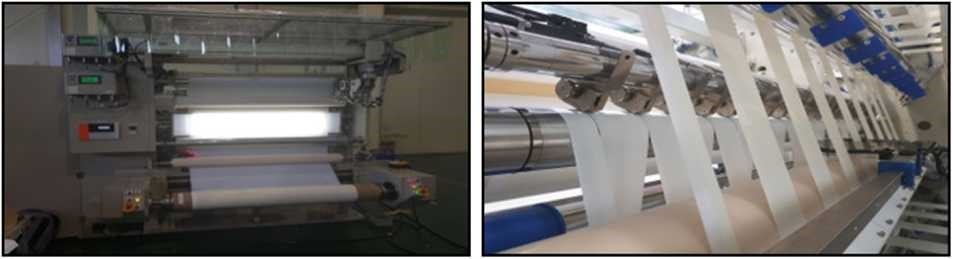

Aramid Separator Slitting Machine
