편광 필름 로터리 커팅 및 슬리터

Polaroid Film Rotary Cutting & Slitting Machine
(주)피엔티 > 제품소개 > 기타 기계류 > 소재 필름 > 편광 필름 로터리 커팅 및 슬리터

편광 필름 로터리 커팅 및 슬리터

Machine Introduction

PNT’s Rotary Cutting & Slitting Machine is using rotary cutting type and designed to detect defect film in real time by vision system on polarizing film or TAC film.

This multifunctional machine is using rotary cutting and slitting in one-line.

This Rotary Cutting & Slitting machine is designed to handle web thickness from 400pm to 117pm. Max 2,000mm of material width is applicable at the Max speed of 60m/min.

Machine Specification

Description General specification
Web Material Polarizing Film , TAC film
Web Thickness 117 ~ 400 micron
Web Width Min.412mm ~ Max. 2,000mm.
Roll Width Max. 2,500mmL
Mechanical Speed Max.60m/min. (Working Speed : 50m/min)
Unwinding Diameter Max. 1,000mm (Weight: Max. 2,500kg).
Unwinding Direction For both Upward & Downward
Unwind Tension Max. 400N.
Slitting Type Shear Knife Cutting System.
Cutting Type Rotary Cutting System.

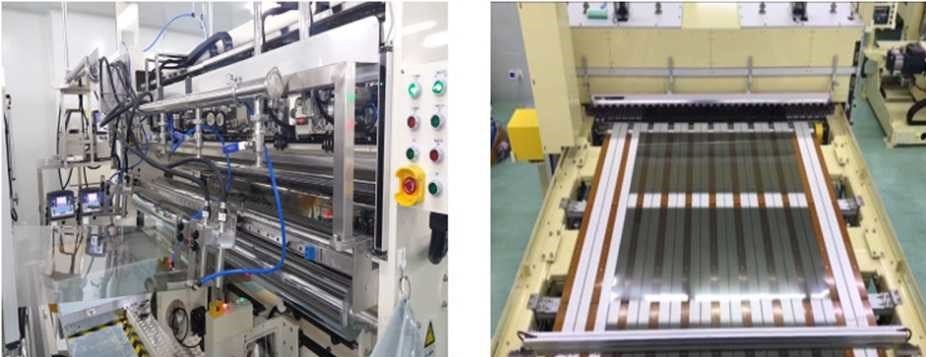

Polaroid Film Rotary Cutting & Slitting Machine
