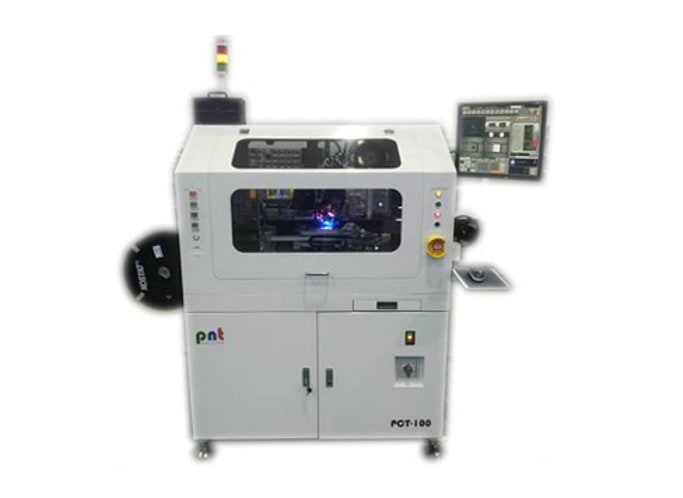

CSP LED Taping Machine

PNT > Product > Automation Machinery > Semi Conductor > CSP LED Taping Machine

CSP LED Taping Machine

Description

PNT’s CSP LED Taping Machine is an equipment that taps the LED chip on the wafer to the SMT carrier tape at high speed.

Machine Specifications

  General specification
Index Time Cycle Time : 180ms
Taping Accuracy  X.Y=25㎛ under
Chip Size 0.12 x 0.12 ~ 4 x 4mm, 0.1~3.5mm(T)
Taping Force 20-300g (Digital Setting )
Vision ZOOM LENS (0.5X)
Wafer Type BIN Plate & Wafer Ring
Wafer Loading Automatic Cassette & Transfer
