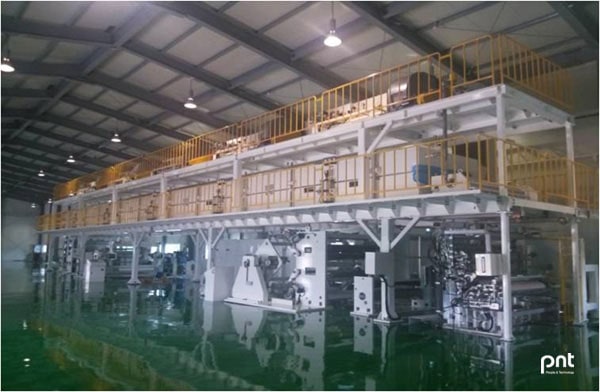

Silicone Coating Machine

Silicone Coating Machine


PNT’s Silicone Coater emphasizes its high speed ability. It has more high productivity, easier work-ability, and better price efficiency than existing machines.

This coating machine uses 5-Roll coating system for paper and plastic web material.

Drying type is Air Floating type for maximizing high speed coating.

Machine Specification

  General specification
Web Material Paper or Plastic Film
Paper. Plastic Film Paper (70~120GSM). Plastic Film (12~100 micron)
Web Dia. 1,100mm
Web Width Min. 1,090mm ~ Max. 1,524mm
Roll Width 1,700mm
Mechanical Speed Max. 500m/min
Coating System 5 Roll Coating System
Dryer Type Air Floating type.
Silicone Coating Machine
