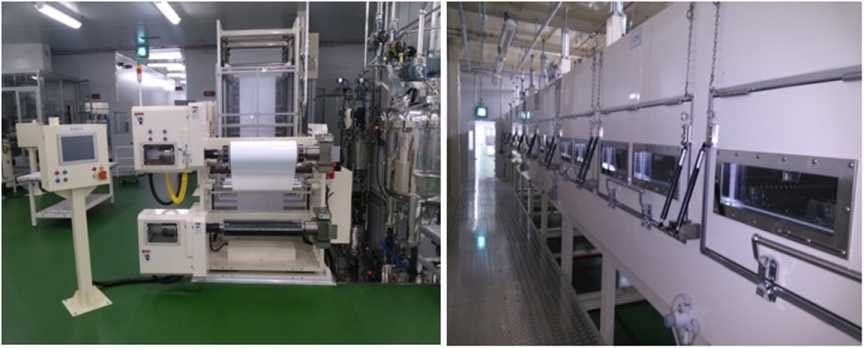

Horizontal Separator Coating Machine

PNT > Product > Coating Machinery > Advanced Material – Separator > Horizontal Separator Coating Machine

Horizontal Separator Coating Machine

Description

PNT’s Horizontal Separator Coater is a suitable facility for ceramic coating through slot die coating method on polyolefin based film.

The Slot die head enables to control the coating thickness more precisely and uniformly, on single-sided or double-sided coating.

Machine Specifications

  General specification
Web Material Polyolefin Film
Web Thickness  9 ~ 30 micron
Web Width Max. 1,200mm
Roll Width Max. 1,400mm
Coating Thickness 2 ~ 10 ㎛
Machine Speed Max. 50m/min
Coating System Slot Die System
Winding System Center Winding System
