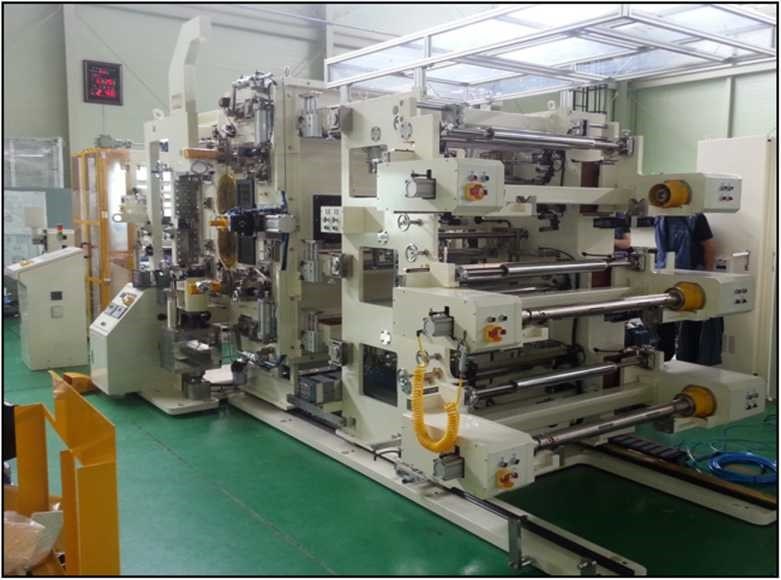

FCCL Laminating Machine (3 bobines type)

Description

PNT’s FCCL Laminating Machine (3 bobines type) is equipped with 3-Axis system and is specialized in Lami-gap control.
The machine can produce thin product and secure the convenience, stability, and efficiency to user.

Machine Specifications



General Specification

Web Materials

Copper Foil, Polyimide resin lamination, PI Film

Web Thickness

1st Copper Foil: 9 ~ 35㎛, 2nd PI film + Coating : 12.5 ~ 60㎛, 3rd Copper Foil : 9 ~ 35㎛

Web Width

650mm

Roll Width

750mm

Machine Speed

10m/min

Heating Roll

Temperature (Max. 400°C)
