Film Traverse Winding Machine

PNT > Product > Other Machinery > Advanced Material – Film > Film Traverse Winding Machine

Film Traverse Winding Machine

Description

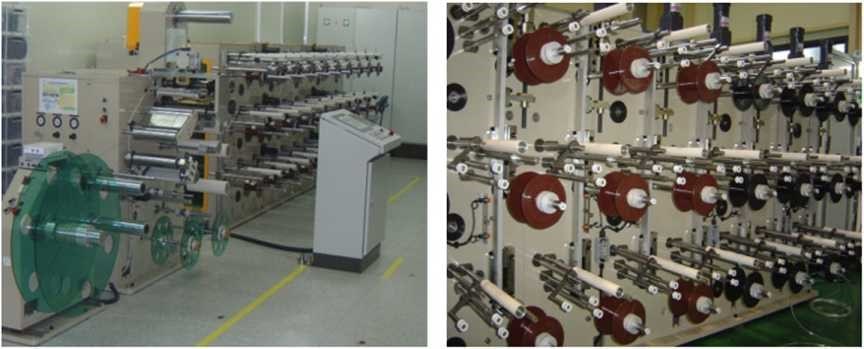

PNT’s Film Traverse Winding Machine is a facility for traverse winding of strip-type fabrics such as narrow tape or film.
Each winder is capable of individual tension control, and over 30cuts traverse winding is possible at a maximum speed of 100min/min.

Machine Specifications



General specification

Web Material

Tape (Material: Silicon, Polyurethane, Poron)

Web Thickness

700 ~ 1,200 micron

Web Width

100 mm

Slitting Width

Max. 4 mm ~ Min. 2.5 mm

Slitting 수

Max. 30 cuts

Mechanical Speed

Max. 100 m/min

Slitting System

Shear Knife Slitting System

Unwind Diameter

Max. 800mm

Rewind Diameter

Max. 60mm

Winding System

Individual Shaft Traverse & Center Winding System
