Polaroid Film Laminating Machine

Description

PNT’s Polaroid Film Laminating Machine stably transports the film to next process,
after laminating the sheet and fabric.

Machine Specifications



General specification

Web Material

Film A(Separator, Adhesive,
Compensation Plate, Protective Film)
Film B(Separator, Adhesive,
Compensation Plate, Protective Film)

Web Thickness

150 ~ 400 micron

Web Width

Min.1,330mm ~ Max. 1,500mm.

Roll Width

1,600mmL.

Mechanical Speed

Max.15m/min ~ Min. 3m/min.

Unwinder Dia.

Max. 800mm (Weight: Max. 1,000kg).

Unwinder Direction

Upper & Lower combined

Unwind Tension

Max. 300N  ~ Min. 100N / Web Width

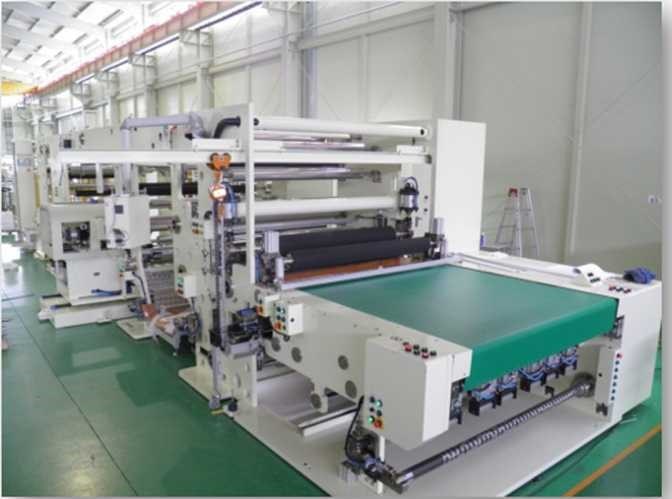

Polaroid Film Laminating Machine
