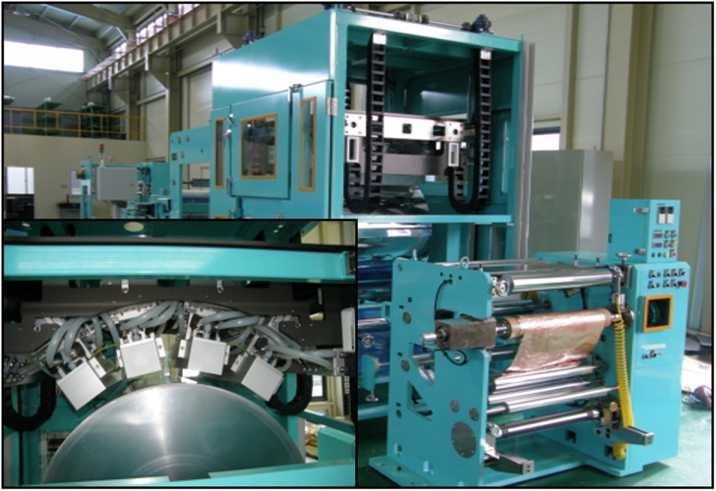

FCCL Plazma Treatment Machine

PNT > Product > Other Machinery > Advanced Material – Copper Foil > FCCL Plazma Treatment Machine

FCCL Plazma Treatment Machine

Description

PNT’s FCCL Plazma Treatment Machine processes to improve PI surface adhesion by radiating Plazma Gas Beam on the PI layer.

After plasma treatment, Edge Slitting Part or Inspection Part can be applied.
The machine can remove organic matter from the PI surface, as well.

Machine Specifications



General Specification

Web Materials

Cu Foil (electrolytic Cu foil with PI film,
, rolled Cu Foil)

Web Thickness

FCCL: 24 ~ 60㎛
Cu Foil: 12 ~ 35㎛(electrolytic or rolled Cu foil)
PI Film: 12 ~ 25㎛

Web Width

Max. 540mm

Roll Width

650mm

Machine Speed

10m/min

이itting Width

Max. 520mm

FCCL Plazma Treatment Machine
