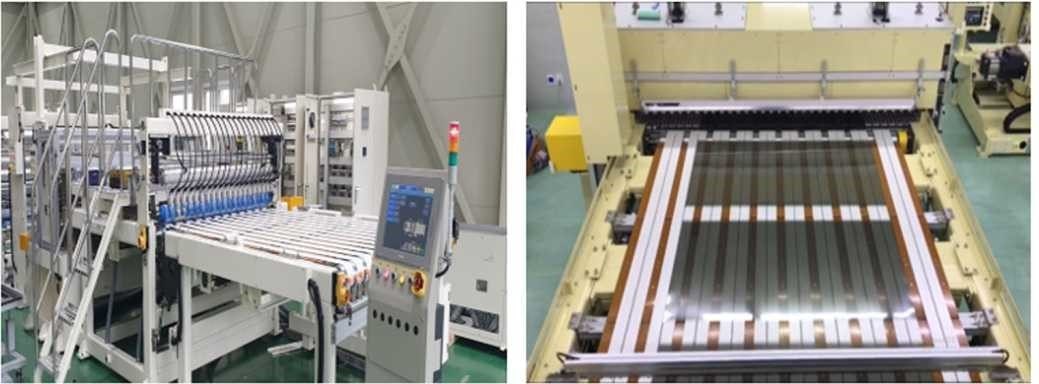

Polaroid Film Rotary Cutting Machine

Description

PNT’s Polaroid Film Rotary Cutting Machine features with rotary cutting type and is designed to detect defect film in real time by vision system on polarizing film or TAC film.
This Rotary Cutting machine is designed to handle web thickness from 150㎛ to 500㎛.
Min. 450mm to Max. 1,700mm web width is applicable at the Max speed of 60m/min.

Machine Specifications



General specification

Web Material

Polarizing Film, TAC film

Web Thickness

150 ~ 500 micron

Web Width

Min.450mm ~ Max. 1,700mm

Roll Width

1,900mm

Mechanical Speed

Max.60m/min. (Working Speed : 40m/min)

Unwinding Diameter

Max. 1,000mm (Weight: Max. 1,500kg)

Unwinding Direction

For both Upward & Downward

Unwind Tension

Max. 400N.

Cutting Type

Rotary Cutting System
