Ultra Filtration Membrane Coating Machine

PNT > Product > Coating Machinery > Advanced Material – Water Treatment Filter > Ultra Filtration Membrane Coating Machine

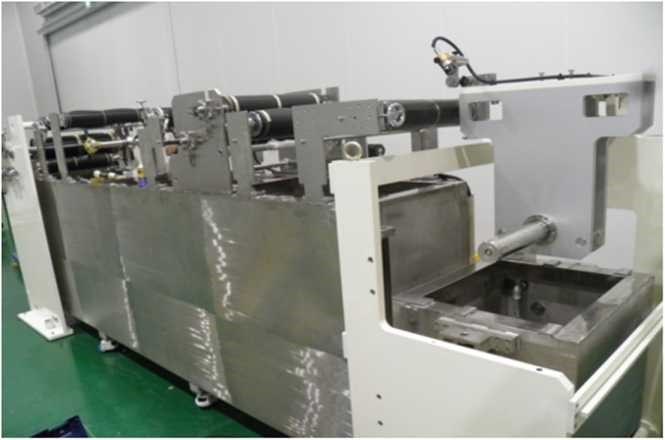

Ultra Filtration Membrane Coating Machine

Description

PNT’s Ultra Filtration Membrane Coater produces the filters for water treatment.
By using the slot die coating system, The machine can precisely creates 0.1nm micro-filtration membrane.

Machine Specifications



General specification

Web Material

Non-woven film

Web Thickness

200㎛ ~ 50㎛

Unwinder Daimeter

Max. 400mm

Rewinder Diameter

Max. 400mm

Web Width

Max 250mm~100mm.

Roll Width

2,600mm.

Mechanical Speed

Max. 5m/min.

Coating Thickness

100㎛ ~ 10㎛

Coating System

Slot Die Coating System

Dry System

Roll Supporting & Air Floating Type

Ultra Filtration Membrane Coating Machine
