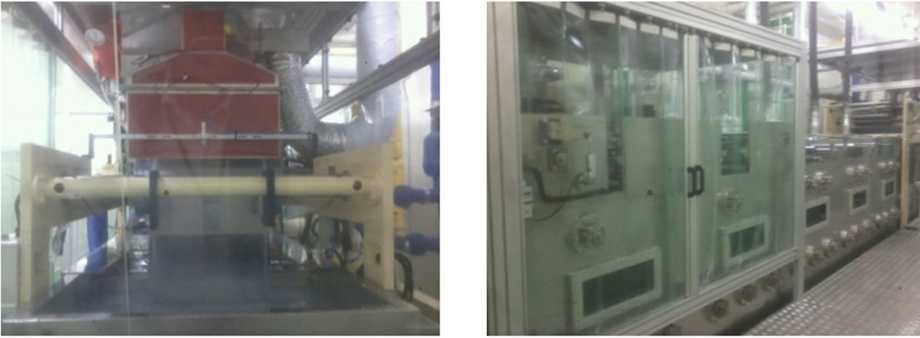

Micro Filtration Membranes Coating Machine

Description

PNT’s Micro Filtration Membranes Coater is a facility that coats on a steel belt and slits it to the required size after drying with hot air.

By detecting the tension of steel belt, the machine automatically controls the alignment when the steel belt is rotated, so the steel belt can be coated to create a 100nm precise filtration filter.

Machine Specifications



General specification

Web Material

Polymer

Web Thickness

140 ~ 145 micron

Web Width

Max. 400mm

Roll Width

500mm

Machine Speed

Max. 5m/min

Rewind Diameter

500mm

Dry type

 Air floating with Hot air nozzle

Winding System

Center Winding System
