Hard Coating Machine

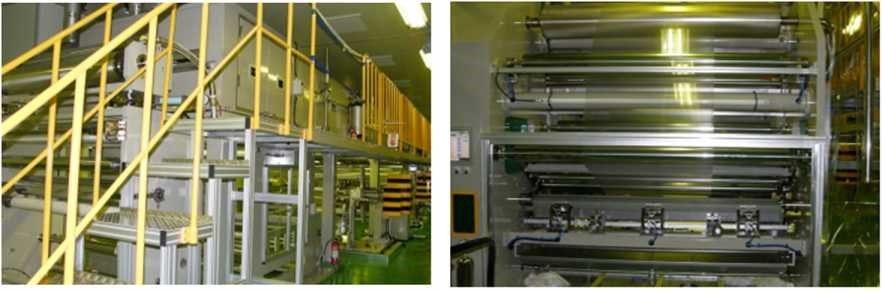

PNT’s Hard Coating Machinery applies micro-gravure coating on PET film. The Machine dries it with hot air, and cures it with UV, and winds the web. Before winding, adding the process of attaching the protective film is possible.

Produced products can be applied to mobile phones and tablet PC industries.

Machine Specifications


General specification

Web Material

PET Film

Web Thickness

Max. 200㎛ ~ Min. 50㎛

Web Width

Max. 1,600mm. 500mm

Roll Width


Coating Thickness

Normal. 1 ㎛ ~ 20㎛ (Wet)

Machine Speed

Max. 50m/min ~ Min. 5m/min (Normal : 30m/min)

Coating System

Micro Gravure

Drying Type

Hot Air Dryer + High UV Lamp
