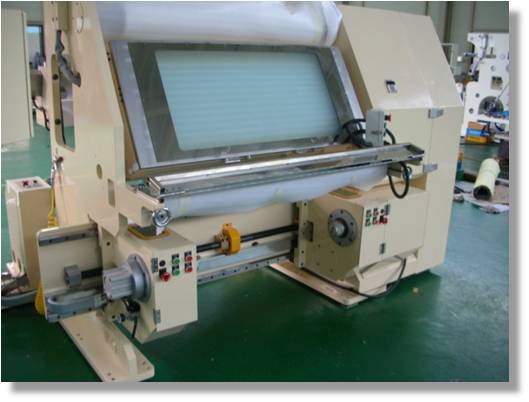

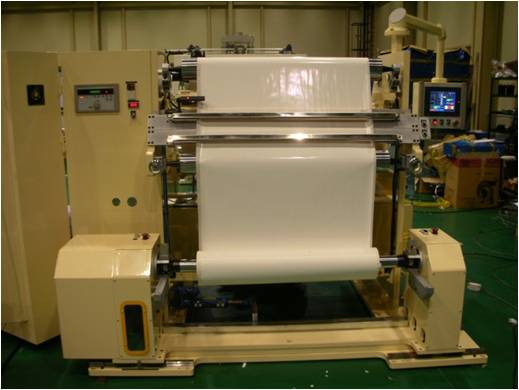

PNT’s Filter Inspection Machine enables visual inspection on the mesh of RO or UF membranes and winds them.
| General specification | |
| Material | Membrane (sheet type) |
| Web Thickness | 100 ~ 150㎛ |
| Web Width | Max. 1,100mm (Surface size: 1,600mm) |
| ROLL Width | 1200mm |
| Speed | Normal 10 ~ 25 m/min |
| Unwinder Tension | 20 ~ 200N / full width (Normal 50 ~ 85 N) |
| Rewinder Tension | 20 ~ 200N / full width (Normal 50 ~ 85 N) |
| Unwinder Dia. (weight) | MAX. 800mm(Max. 1,000kg) |
| Rewinder Dia. | MAX. 500mm |
| Direction of Re/Unwinder | Up or Down |
