Copper Foil Cutting Machine

Battery Division / Secondary Cell
PNT > Product > Other Machinery > Advanced Material – Copper Foil > Copper Foil Cutting Machine

Copper Foil Cutting Machine

Description

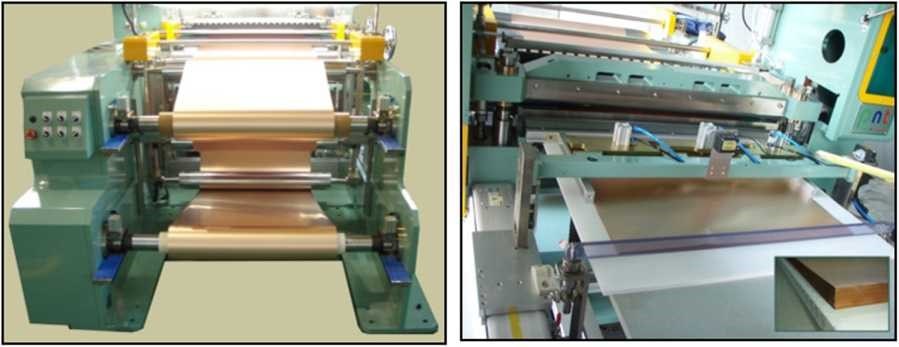

PNT’s Copper Foil Cutting Machine cuts 2 sheets of electrolytic copper foil and rolled copper foil together in a certain width by using 2 axes of the Unwinder.

The machine adopts the Auto Loading system, which benefits of improving productivity.

Machine Specifications



General Specification

Web Materials

Copper Foil, Battery Copper Foil

Web Thickness

9 ~ 105㎛

Web Width

1,000mm

Machine Speed

Tack Time 6 Sec. : 1 Cycle Time

Roll Width

1,200mm

Slitting System

Guillotine Knife System
