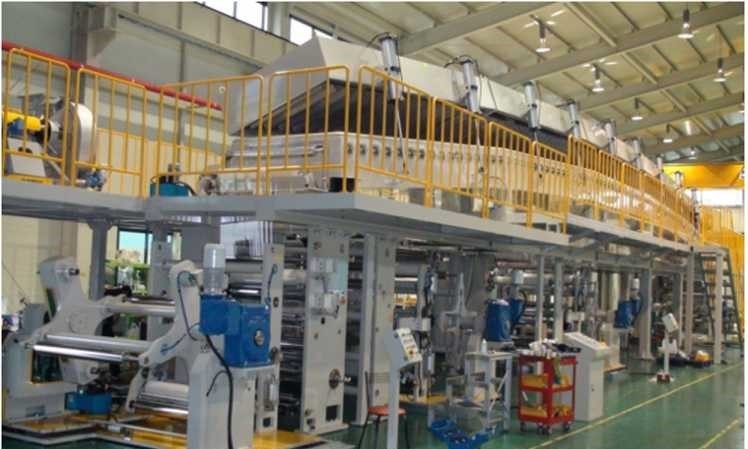

Polaroid Film Adhesive Coating Machine

Description

Applied with accumulated know-how, PNT’s Polaroid Film Adhesive Coater has higher productivity and easier workability than the existing machines, resulting in higher price competitiveness for customer’s products.

Comma Coating System is used for plastic film, and the optional air-floating drying system enables high-speed coating performance.

Machine Specifications

Description

General specification

Web Material

PET Film

Web Thickness

PET Film (50-100 micron)

Web Roll Dia.

1,100mm

Web Width

Min. 1,090mm ~ Max. 1,524mm

Roll Width

1,700mm

Mechanical Speed

Max. 70m/min

Coating System

Comma Coating System

Dryer Type

Roll Supporting 방식.

Polaroid Film Adhesive Coating Machine
