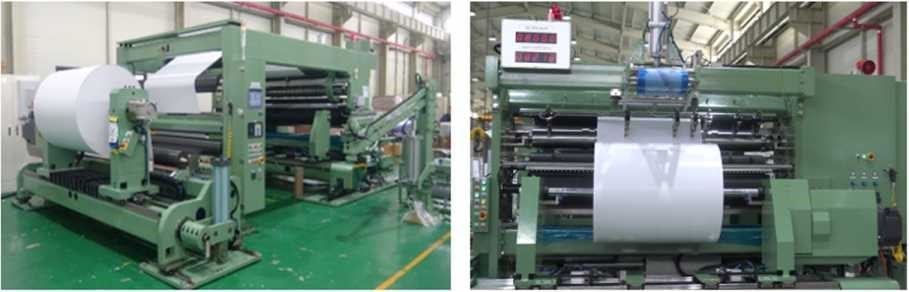

Thermal Paper Slitting Machine

PNT > Product > Slitting Machinery > Advanced Material – Film > Thermal Paper Slitting Machine

Thermal Paper Slitting Machine

Description

PNT’s Thermal Paper Slitter is a facility, specialized in fast slitting, input with width of 2,300mm paper (maximum weight of about 3.0Ton), slitting to various widths Min 200mm to Max 2,100mm, at a high speed of up to 800m/min.

Machine Specifications

Description

General specification

Web Material

Paper  & Thermal Paper

Web Thickness

40 ~ 300 gsm

Unwinder Daimeter

Max. 1,400mm. (3t)

Rewinder Diameter

Max. 1,350mm. (3t)

Web Width

Max. 2,300mm ~ Min. 400mm

Roll Width

2,400mm.

Mechanical Speed

Max. 1,000 m/min

Slitting width

Min. 200mm ~ Max. 2,100mm
(Max. cut into 6 rolls )

Slitting type

Shear Knife Cutting System

Winding system

2 Shaft Center Winding System

Thermal Paper Slitting Machine
