Separator Winding Machine

PNT > Product > Other Machinery > Advanced Material – Separator > Separator Winding Machine

Separator Winding Machine

Description

PNT’s Separator Winding machine is specialized in processing the coated porosity film. This machine is designed to handle with web thickness from 10㎛ to 30㎛.

Max 66.6 mm of web width is applicable with the tension level of 0.5~2Kgf, at Max speed 700m/min.
Vibration is highly minimized during maximum speed operation.

Machine Specifications



General specification

Web Material

Separator Film

Web Thickness

Min. 10㎛ ~ Max. 30㎛
(Normal operation: 12㎛ ~ 20㎛)

Web Width

66.6mm.

Roll Width

300 mm

Mechanical Speed

Max. 700m/min (Normal. 600m/min)

Unwind Diameter

Max. 350 mm

Rewind Diameter

Max. 350 mm

Winding System

Shaft Center Winding System with Touch Roll

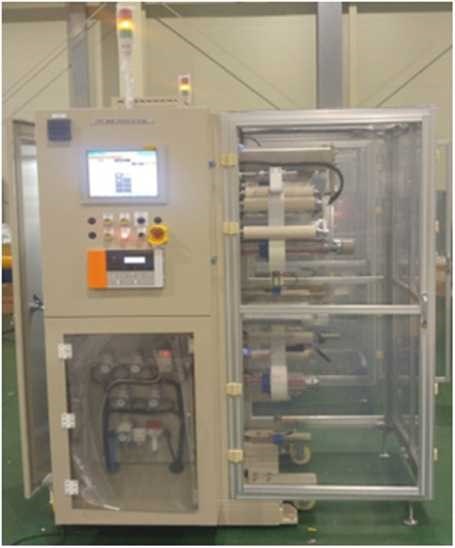

Separator Winding Machine

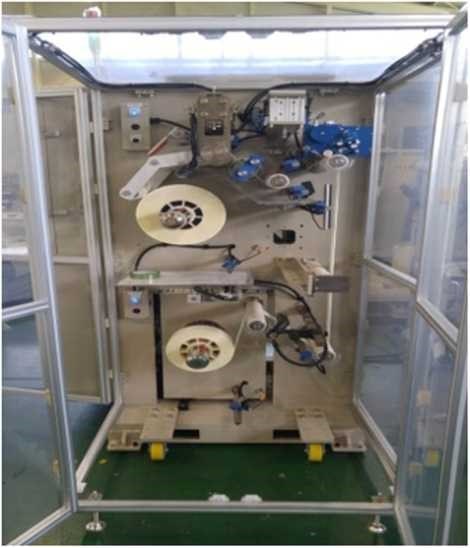

Separator Winding Machine
