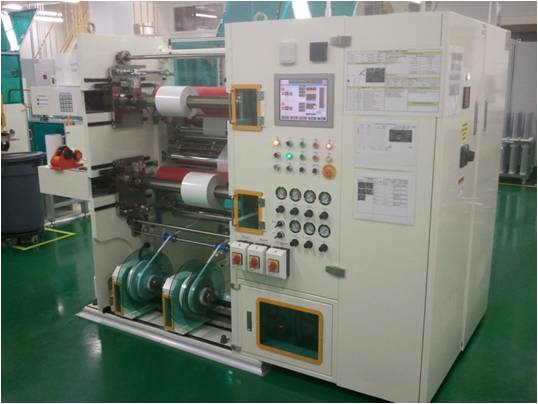

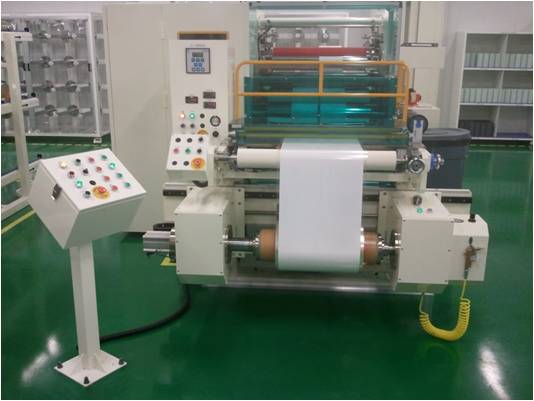

Filter Slitting Machine

Filter Slitting Machine


PNT’s Filter Slitter is a facility that slits RO or UF membranes to a desired width,
and improves fabric deformation and wrinkles through precise tension control.


Machine Specifications

  General Specification
Web Materials membrane (sheet type)
Web Thickness 100 ~ 150㎛
Web Width Max. 1,100mm (표면 크기 : 1,600mm)
Slitting Width 300mm, 1,000mm
Machine Speed Max. 80m/min (Normal. 50m/min)
Slitting System Shear Knife Slitting System
Unwind Diameter Max. 700mm
Rewind Diameter Max. 700mm
Winding System Gap & Touch type
