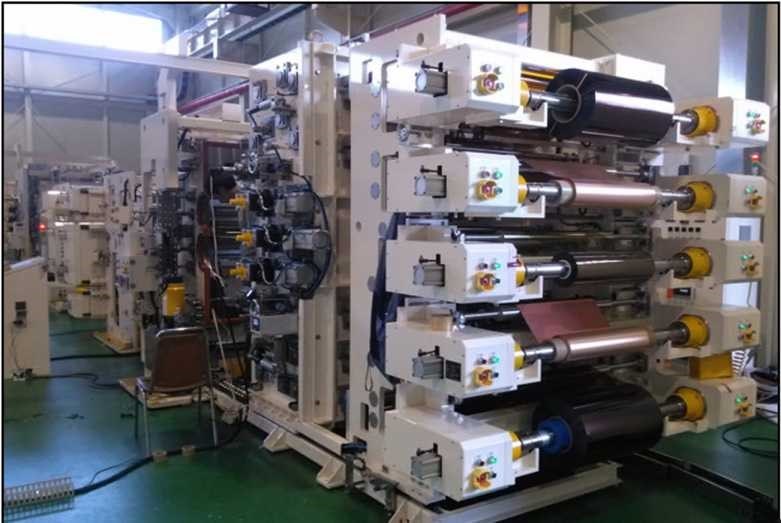

FCCL Laminating Machine (5 bobines type)

Description

PNT’s FCCL Laminating Machine (5 bobines type) is specialized in Lami-gap control.
The machine is with high production yield by protecting the surface of the product, using 5-axis.
The convenience, stability, and efficiency to user are guaranteed.

Machine Specifications



General Specification

Web Materials

Copper Foil, Polyimide resin lamination, PI Film

Web Thickness

1st: 75 ~ 125㎛, 2nd : 9 ~ 35㎛, 3rd : 8 ~ 60㎛,
4th : 9 ~ 35㎛, 5th : 75 ~ 125㎛

Web Width

650mm

Roll Width

750mm

Machine Speed

10m/min

Heating Roll

Temperature (Max. 400°C)
