Non-woven Fabric Traverse Winder Machine

PNT > Product > Other Machinery > Advanced Material – Non-woven Fabric > Non-woven Fabric Traverse Winder Machine

Non-woven Fabric Traverse Winder Machine

Description

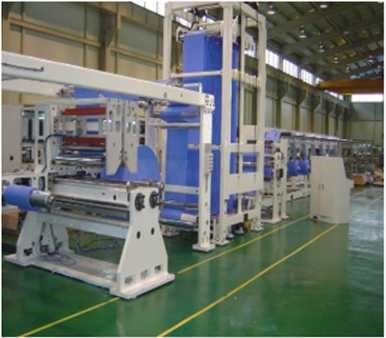

PNT’s Non-woven Fabric Traverse Winder Machine is a facility that can make up to 12 cuts at a maximum speed of 600m/min by applying individual Shaft Traverse Winding & Center Winding System and Shear Knife System.

In particular, the machine can maximize productivity by improving operator convenience and minimizing fabric replacement time,

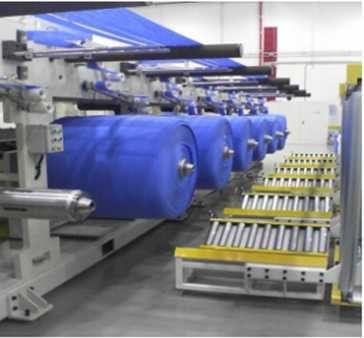

thanks to applying Auto Splicing system to the Unwinder and Unloading unit/ Tilting unit/Conveyor unit to the Rewinder.

Machine Specifications

Description

General specification

Web Material

Nonwoven (VFL, MB, MFAL)

Web Thickness

Min. 300 ~ Max. 600 micron

Web Width

1,000 mm

Slitting Width

Max. 110 mm ~ Min. 60 mm

Slitting cuts

Max. 12 cuts

Mechanical Speed

Max. 600 m/min

Slitting System

Shear Knife Slitting System

Unwind Diameter

Max. 1,600mm

Rewind Diameter

Max. 1,100mm

Winding System

Individual Shaft Traverse & Center Winding System
