Ceramic Separator Slitting Machine

PNT > Product > Slitting Machinery > Advanced Material – Separator > Ceramic Separator Slitting Machine

Ceramic Separator Slitting Machine

Description

PNT’s Ceramic Separator Slitter is suitable for processing porosity film which is ceramic coated.
Web thickness from 10㎛ to 30㎛ is manageable on this machine.

The machine features with max web width 1,200mm, max speed of 200m/min at 0.5~2Kgf of tension.
The vibration is minimized even at maximum processing speed.



Machine Specifications

  General specification
Web Material Separator Film(Ceramic coated)
Web Thickness Min. 10㎛ ~ Max. 30㎛
(Normal Operation: Min. 12㎛~Max. 20㎛ )
Web Width Max. 1,200mm.
Slitting Width Max. 150mm ~ Min. 50mm
Roll Width 1,300 mm
Mechanical Speed Max. 200m/min (Normal. 100~150m/min)
Unwind Diameter Max. 600 mm
Rewind Diameter Max. 350 mm
Slitting System Shear Knife Slitting System
Winding System 2 Shaft Center Winding System

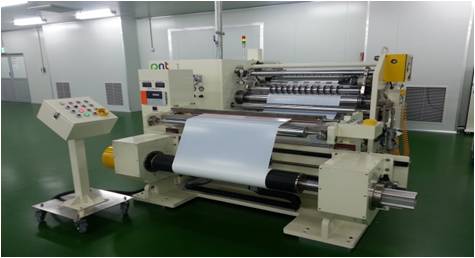

세라믹 분리막 슬리터

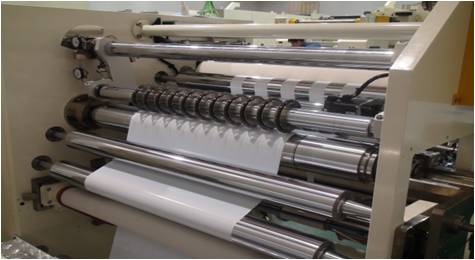

세라믹 분리막 슬리터

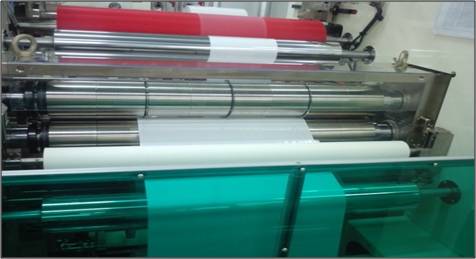

세라믹 분리막 슬리터

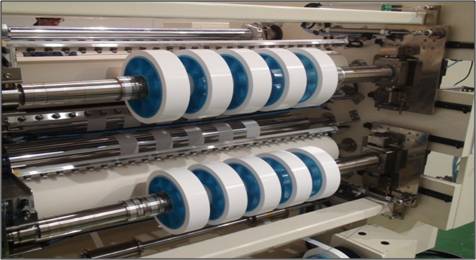

세라믹 분리막 슬리터
